GPD WIN MAX 2 Handheld gaming PC

SKU: GPD-WIN_MAX_2-6800U Tags: , ,
  • AMD Ryzen 7 6800U @2.7GHz TDP 15-28W
  • AMD Radeon 680M 12 CUs @2200 MHz
  • up to 32GB LPDDR5-6400 MT/s
  • up to 2TB High-Speed PCI-E NVMe SSD
  • WiFi 6 & Bluetooth 5.2 Support
Add to wishlistAdded to wishlistRemoved from wishlist 36
Add to compare

Starting at £1,080.95 Incl. VAT

13 People looking at this now
American Express Apple Pay Klarna Mastercard PayPal Visa

Great Accessories

Description

The GPD WIN MAX 2 gaming ultrabook features the latest in processor technology AMD models available.

The GPD WIN MAX 2 AMD model has the AMD Ryzen 7 6800U with 8 cores and 16 threads running up to 4.70GHz between 15-28W TDP. For graphics there is the high-performance AMD Radeon 680M running up to 2.2GHz. There is a choice of 16GB or 32GB LPDDR5-6400 RAM and 1TB or 2TB of fast M.2 NVMe 1.4 storage. There is also an additional M.2 slot for another SSD, as well as a MicroSD card slot for expansions

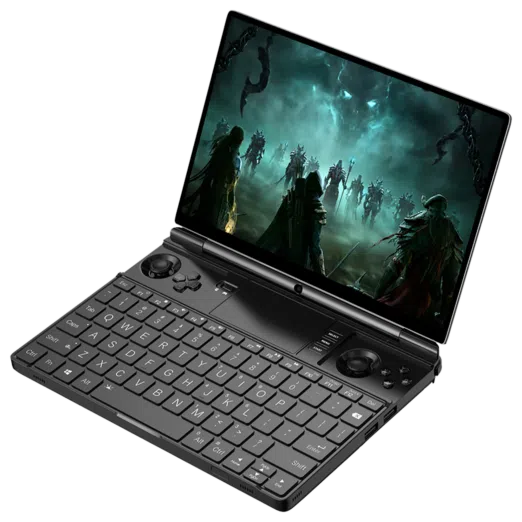

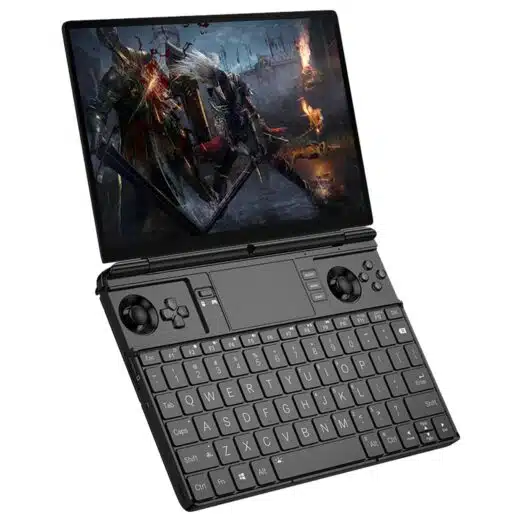

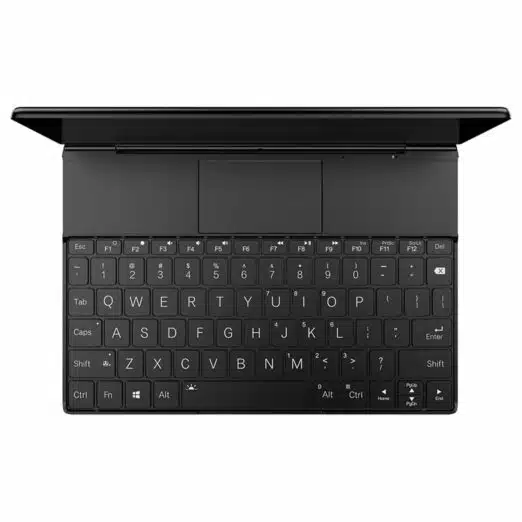

The GPD WIN MAX 2 measures approx. 8.9 x 6.2 x 0.9 inches (22.7 × 16.0 × 2.3 cm) and weighs around 1005g. The laptop style design lifts up to reveal a 10.1 inch IPS touchscreen display with a 1920×1200 default resolution, supporting up to 2560×1600. Below is a 2 level backlit QWERTY keyboard and Microsoft Precision TouchPad. Behind two discreet removeable panels are a full set of gaming controls, with D-Pad, clickable analogue sticks and full gaming buttons.

For wireless communications there is 802.11 a/b/g/n/ac/ax WiFi 6 and Bluetooth 5.2 support. There is an optional module (sold separately) for 4G LTE for Nano-SIM cards. The power button features a fingerprint sensor for securing logging into your device. There is a built-in 2MP camera and microphone which is ideal for video conferencing.

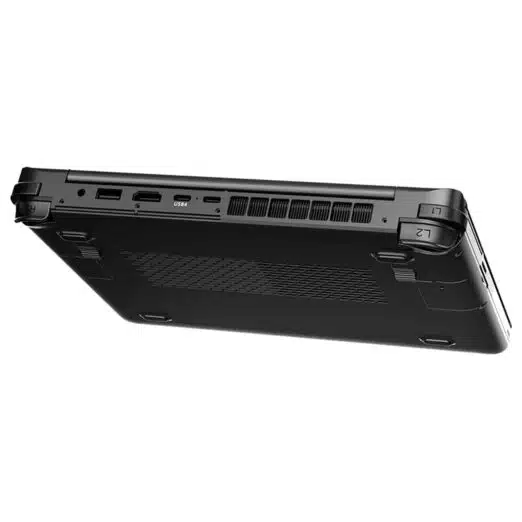

The GPD WIN MAX 2 is perfect as a work and gaming ultrabook with its 67Wh hour Li-polymer rechargeable battery. The high performance processors, RAM and storage will ensure your daily work tasks, ranging from working on office documents through to video editing, are completed efficiently. And during your down time, you can remove the gaming panels and enjoy the latest AAA Windows games with high quality visuals and fast gameplay. The analogue joysticks use hall sensors using magnets instead of traditional sensors to ensure accuracy and longer lifespan of the moving parts.

Technical Specifications

Software
OSWindows 11 Home 64bit
SecurityPIN
Processor
BrandAMD
ModelRyzen™ 7 6800U
Litography6nm
# Cores8
# Threads16
Turbo Frequency4.70 Ghz
TDP15W-28W
Cache Level 316 MB
Core ArchitectureZen3+
Graphics Processor
InterfaceIntegrated
BrandAMD
ModelAMD Radeon™ 680M
Max Dynamic Frequency2.2 Ghz
4K Image resolutionSupports
eDP 1.4b4096 x 2304 @120Hz
OpenGL4.6
DirectXDX12,DX12.1,DX 12 Ultimate
Display
Screen TypeIPS Technology
ProtectionCorning Gorilla Glass 5
Touch-Screen
Size10.1"
Aspect Ratio16:10
Screen ResolutionDefault: 1920×1200,Maximum: 2560×1600
Pixels/Inch299 PPI
Touch PanelSupports 10-point Touch, And Active Pen With 4096-level Pressure-sensitivity (MPP2.0, Including Surface Pen) Corning
Memory (RAM)
Capacity16GB / 32GB
TechnologyLPDDR5-6400 MT/s
Storage
CapacityM.2 2280 SSD 1TB / 2TB
Hard Disk TypeM.2 SSD
Bus SpecificationPCIe 4.0 × 4
Transfer ProtocolNVMe 1.4
Speed7000MB/s - R/W
I/O Interface
Video / Data / Charging(AMD)1×USB4(40Gbps); 1×USB 3.2 Gen 2 Type-C; 3×USB 3.2 Gen 1 Type-A; HDMI 2.1
Audio1×3.5mm Headphone/Microphone Combo Interface
WiFi 6Transmission Rate 2402Mbps
Bluetooth5.2
CameraBuilt-in Camera: 2 Million Pixels, Maximum Resolution: 1612×1212, Super Wide-angle, High Refresh Rate
microSDXC SlotBus interface: UHS-I
SD SlotRead 312MB/s,Write: 312MB/s
Input
PowerPower Button With A Fingerprint Sensor
KeyboardQWERTY Keyboard (US Layout)
MouseThe Joystick Simulates A Mouse, Requires Switching The Mode Gamepad / Mouse
JoystickHall Sensor Sticks, Stepless, Super Linear, No Dead Zone, Sink-in Design, Native Support For Down Pressure Sensitive L3 / R3
Game Accessories ButtonsAnalog Triggers
Game Function ButtonsDouble Silk-printed Label (ABXY, △○×□, Select, Start, Xbox (Menu))
D-PadSiamese Arrow Keys
Handle VibrationDouble Vibration Motor
TouchPadMicrosoft Precision TouchPad (PTP)
Sensor6-axis Gyroscope

Package Includes

1* GPD WIN Max 2
1* Power Adapter
1* Product Manual

Please Note

In line with the policy of continued development, the manufacturer reserves the right to amend the specifications without prior notification. The illustrations in the user manual are for reference only.

Videos

Videos: GPD WIN MAX 2 Handheld gaming PC

Reviews

Customer Reviews

Based on 36 reviews
89%
(32)
8%
(3)
0%
(0)
0%
(0)
3%
(1)
C
C.D. (Rotterdam, The Netherlands)
Great for music production

I was searching for a portable solution for music production at home and live on stage as my intel I5 8gb was not powerfull enough to handle large libraries and many tracks. Also gaming was not really possible.

But now (as expected) with this machine everything is blazing fast!! I installed WIN 11 Pro and added a 1TB of extra storage (2230 M.2 NVMe Gen 4 1 TB, 4750 MB/s) for prodution files and backup and now have 3TB of storage. You need a really small **** driver for that by the way. The included 2TB is not really fast. Only 3500 during a read speed test. This was already confirmed in several articles online. but a copy of a 6GB file took only a few seconds.

Today I used the 'laptop' the whole day and its a real eye opener between all those MAC and boring Dell and HP laptops :) I used it on public transport too and its so small you have enough room for typing and handling.

Cons: the trackpad is far away and its great it has a touch screen as an extra option not navigate. Pro: a great machine, I hope for a long time as I do not need the latest AAA games. Delivery was really fast and instructions for installation and downloads were clear.

Again, my advise. Do a clean install and check for latest BIOS and drivers.

Thank you for taking the time to leave such a detailed and positive review of the GPD WIN MAX 2 2023. We are thrilled to hear that it has exceeded your expectations for music production and gaming.

We appreciate your advice on upgrading the storage and will take it into consideration for future improvements. We also agree that the portability and convenience of our product make it a great choice for both at-home and on-the-go use.

We are committed to providing fast delivery and clear instructions for installation and downloads, and we are delighted that you had a smooth experience with both.

Thank you again for choosing DroiX and for your recommendation. We hope you continue to enjoy using the GPD WIN MAX 2 for a long time to come.

S
Simon Tse (Brooklyn, United States)

GPD WIN MAX 2 2023

'Thank you for your review of the GPD WIN MAX 2 2023. We are glad to hear that you are satisfied with our product. If you have any feedback or suggestions for improvement, please feel free to let us know. We value your opinion and strive to provide the best experience for our customers. Thank you for choosing DroiX!'

M
Mark Brown (Milton Keynes, United Kingdom)
Changed my life!

I have previously spent ages looking for small yet powerful devices, and even made my own laptop with a desktop 1080 inside! I had been considering doing another build like this when I found the GPD Win Max 2 2023.i wanted something to replace my desktop and laptop, that could hook up to a gpu for high performance VR. This ticked all the boxes, and my only concern was using it for work with the game pad showing, until I saw it has covers! CPU performance is about the same for gaming as my desktop CPU was (10600k),but with faster ram, a faster SSD and the option to be portable or connect to my GPU this has become my everything device. There are a few tools to get used to on it/figure out, however this has been great in the office with additional monitors, great for gaming and all in such a tiny device. The keyboard is excellent to type on, the track pad is usable when really needed but I only really ever use/used a mouse so it's a nice to have backup. The gaming pad isn't as good as a normal controller, but is another nice to have. Cooling and performance is good, although using Ptm is seen as a good mod to do so I plan to do that at some point. This is expensive, but when you add up the cost of a motherboard, cpu, ram, cooler, screen, ssd, etc in a desktop this is not too bad for such a small device. If you use the vr app immersed then this is even better for a day in the office! Highly recommend to others, it has its quirks, but so far I have sorted or got around most of them, one I haven't though is that the keyboard reflects light too much, so if you have a light above you, you might not be able to see the letters on the keyboard too well. Otherwise very happy, thanks GPD/Droix

Thank you so much for taking the time to leave such a detailed and positive review for the GPD WIN MAX 2 2023. We are thrilled to hear that it has changed your life and has become your go-to device for work and gaming.

We understand that there may be some learning curves with the device, but we are glad to hear that you have been able to sort them out. We will definitely take note of your feedback regarding the keyboard's reflection and see if there is anything we can do to improve it.

We appreciate your support and recommendation to others. It means a lot to us and we are so happy to have met your expectations. If you need any assistance in the future, please don't hesitate to reach out to us.

Thank you again and have a great day!

M
Mohammed Ali (Manchester, United Kingdom)
Excellent piece of kit.

Had a faulty track pad on my first purchase but droix handled the exchange fast. Yes I was sad it had to go back but was confident I would get a perfect one as an exchange. It did come fairly fast after they had checked it over and confirmed the fault. Replacement had a keyboard issue where it will stop after it comes out of hibernation or when it's shut down and started up again. Same as another reviewer explained. Few back and forth and diagnosing, reinstalling windows twice etc droix customer service told me to downgrade the bios which I did and it fixed the issue..so thought I would install the latest bios update v0.38 from droix and glad to say it is running fine like it should and realised it runs waaay better and smoother than the v0. 36 which is buggy and laggy. Even on stuff like installing games etc. Droix customer service is excellent, respond fast and do all they can to help. Even reassure you a replacement is ready to be sent out if it can't be fixed(hardware issue). Win max 2 is built like the big boys... solid and premium!

Thank you for leaving such a detailed review of your experience with our GPD WIN MAX 2 2023. We are thrilled to hear that you find it to be an excellent piece of kit and that our customer service team was able to assist you with a speedy exchange process.

We apologize for the initial trackpad issue and the subsequent keyboard issue, but we are glad that we were able to troubleshoot and resolve it for you. We appreciate your patience and understanding during this process and we are glad that the latest BIOS update has improved the performance of your device.

At Droix, we strive to provide top-notch customer service and we are happy to have exceeded your expectations. We hope you continue to enjoy your WIN MAX 2 and we are always here to assist you if you encounter any further issues.

Thank you for choosing Droix!

5
5k1nn3r (Wesley Chapel, United States)
Great but..

Love the size, the power, the graphics, almost everything. The only problem I am having is that the keyboard fails to initiate when coming out of sleep mode or hibernate. I am looking into the cause as everything works in safe mode. I will update this if I find a solution.

Hi,

Thank you for your feedback and for choosing our GPD WIN MAX 2 2023. We are glad to hear that you love its size, power, and graphics. However, we apologize for the issue you are experiencing with the keyboard not initiating when coming out of sleep mode or hibernate. In the meantime, please feel free to reach out to us at support for any further assistance.
