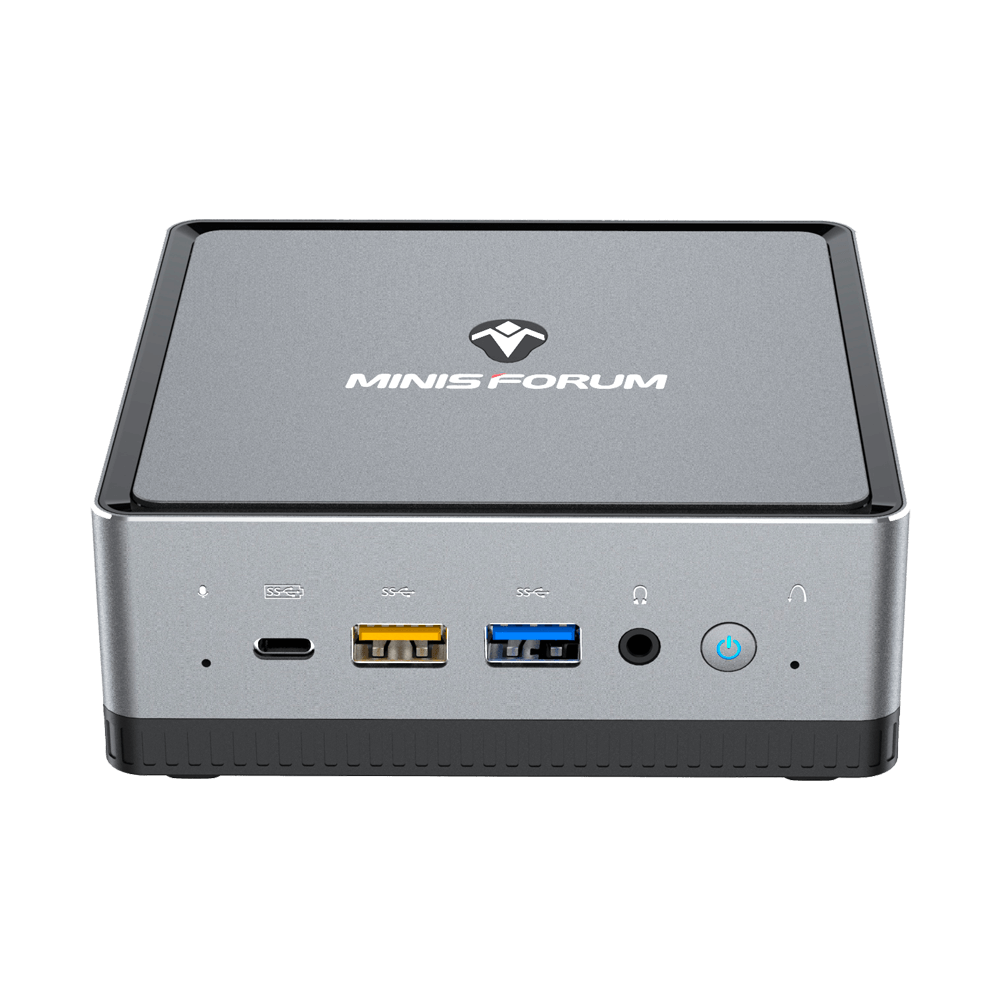

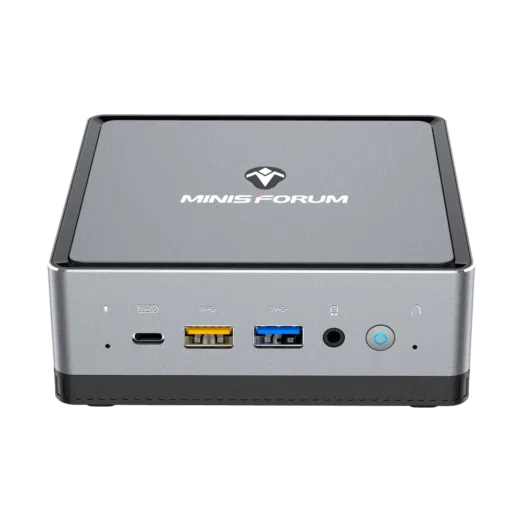

MinisForum DeskMini DMAF5 AMD Ryzen Mini PC

SKU: MINISFORUM-DMAF5 Tags: ,
  • AMD Ryzen 5 3550H 3.7GHz cTDP: 12-35W
  • Up to 32GB Dual-Channel DDR4, 1TB NVMe
  • Radeon™ RX Vega 8 Graphics
  • Triple display support; 4K@60Hz
  • WiFi 6 & Bluetooth 5.1, USB 3.1 Type C
Add to wishlistAdded to wishlistRemoved from wishlist 2
Add to compare

Starting at  £ 369.95 Incl. VAT

Clear
American Express Apple Pay Klarna Mastercard PayPal Visa

Great Accessories

Videos

Videos: MinisForum DeskMini DMAF5 AMD Ryzen Mini PC

Description

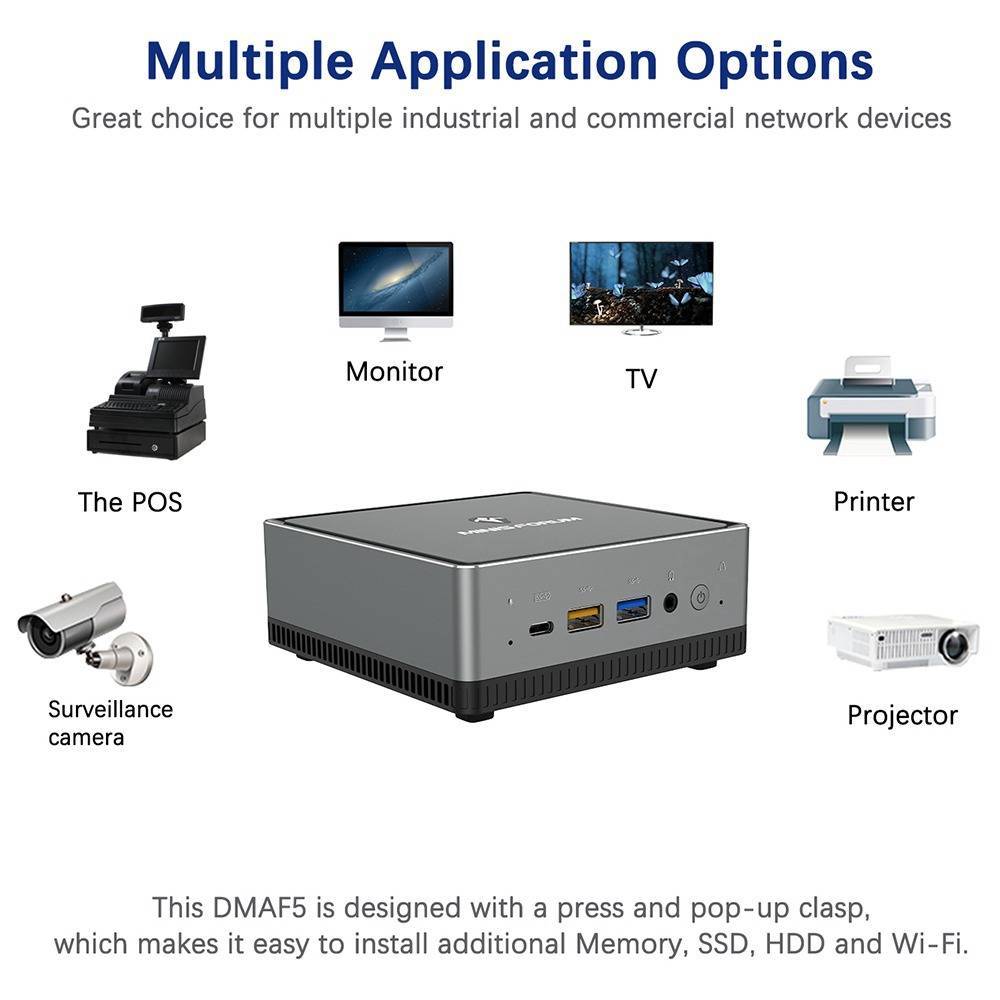

The MinisForum DeskMini DMAF5 is the latest in the up-and-coming line of AMD-powered Mini PC’s, designed to function as a solution for multiple environments, such as a home office, media centre, or even as a digital kiosk!

Sporting a quad-core AMD Ryzen 5 3550H processor alongside the latest Radeon Vega 8 integrated graphics solution, the DMAF5 can handle a multitude of tasks, from general office work, streaming, or even light gaming! With lightning-fast DDR4 RAM as well (that can be upgraded to dual-channel for increased performance/efficiency), you’ll have more than enough horsepower to handle all your favourite applications simultaneously.

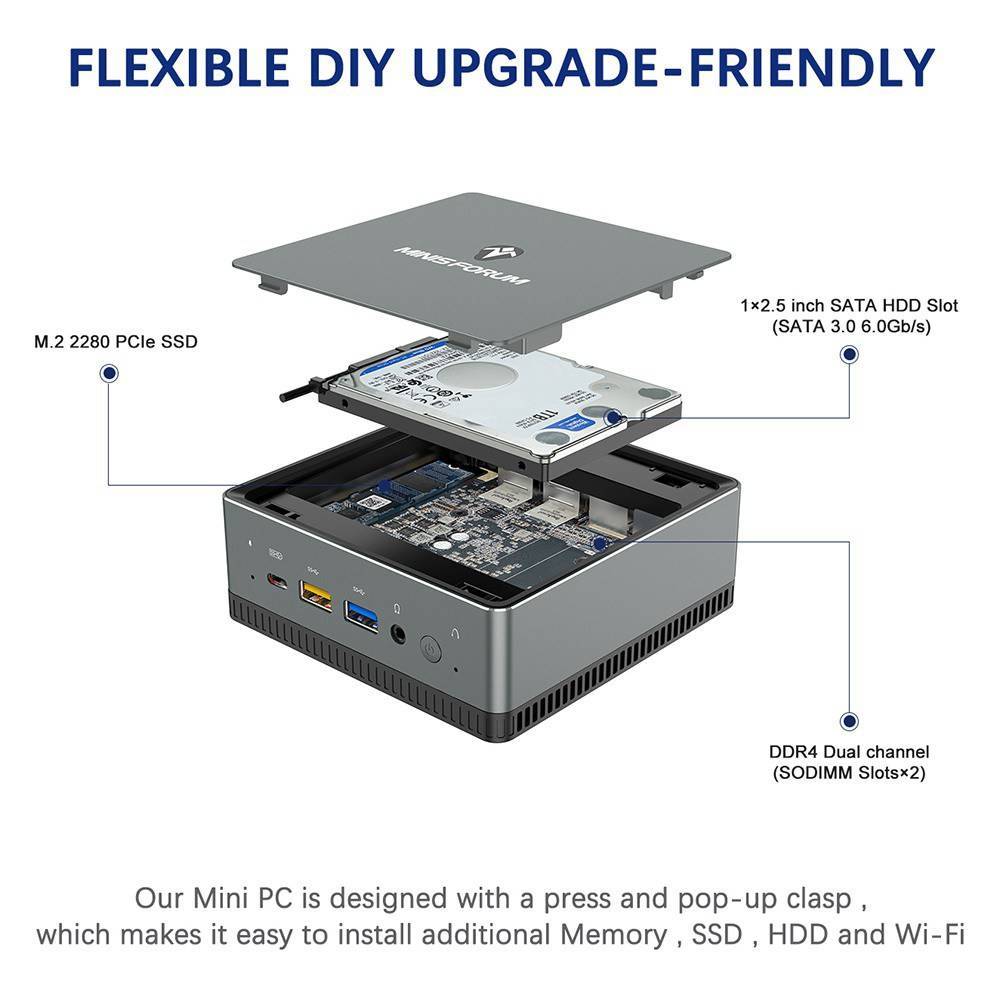

For storage options, the DMAF5 comes with a fast-loading M.2 NVMe SSD, for superior system and app load times. You can also expand the storage further via a 2.5-inch SATA drive of your choice, making this mini computer a great option for any home media centre(HTPC).

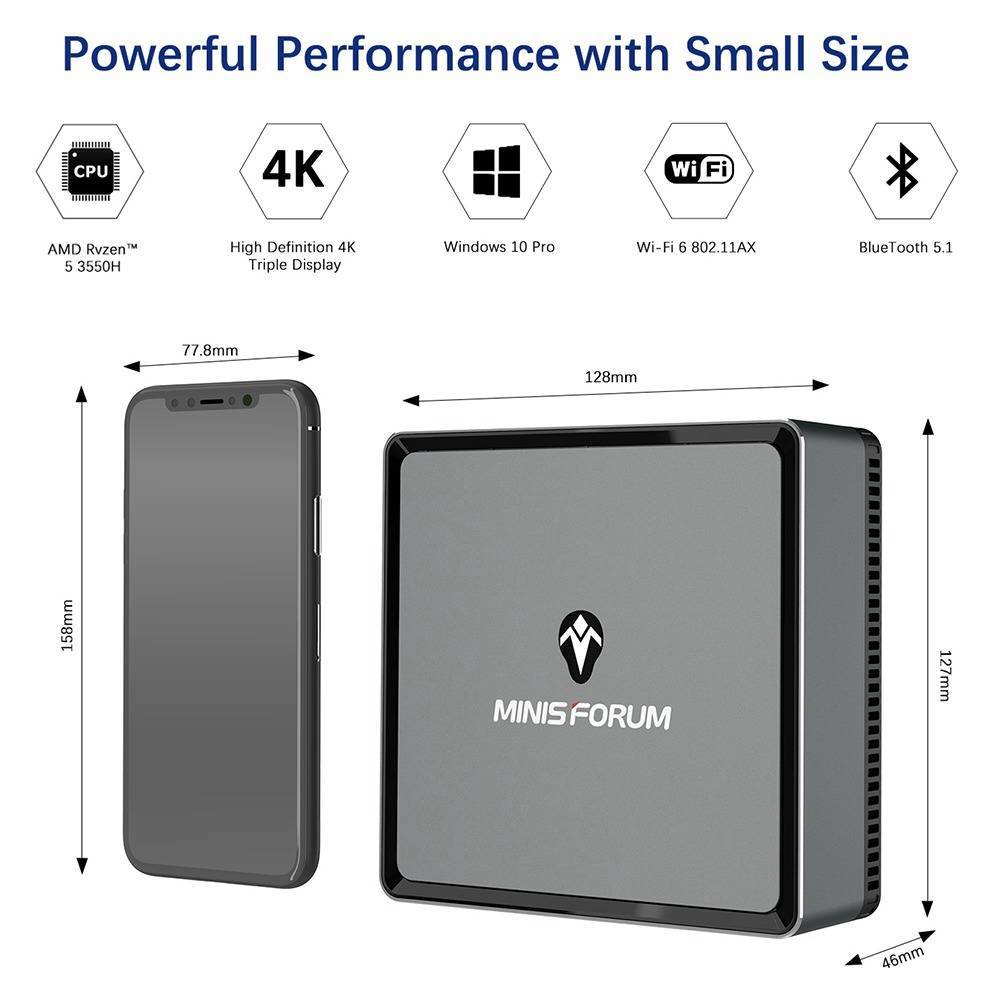

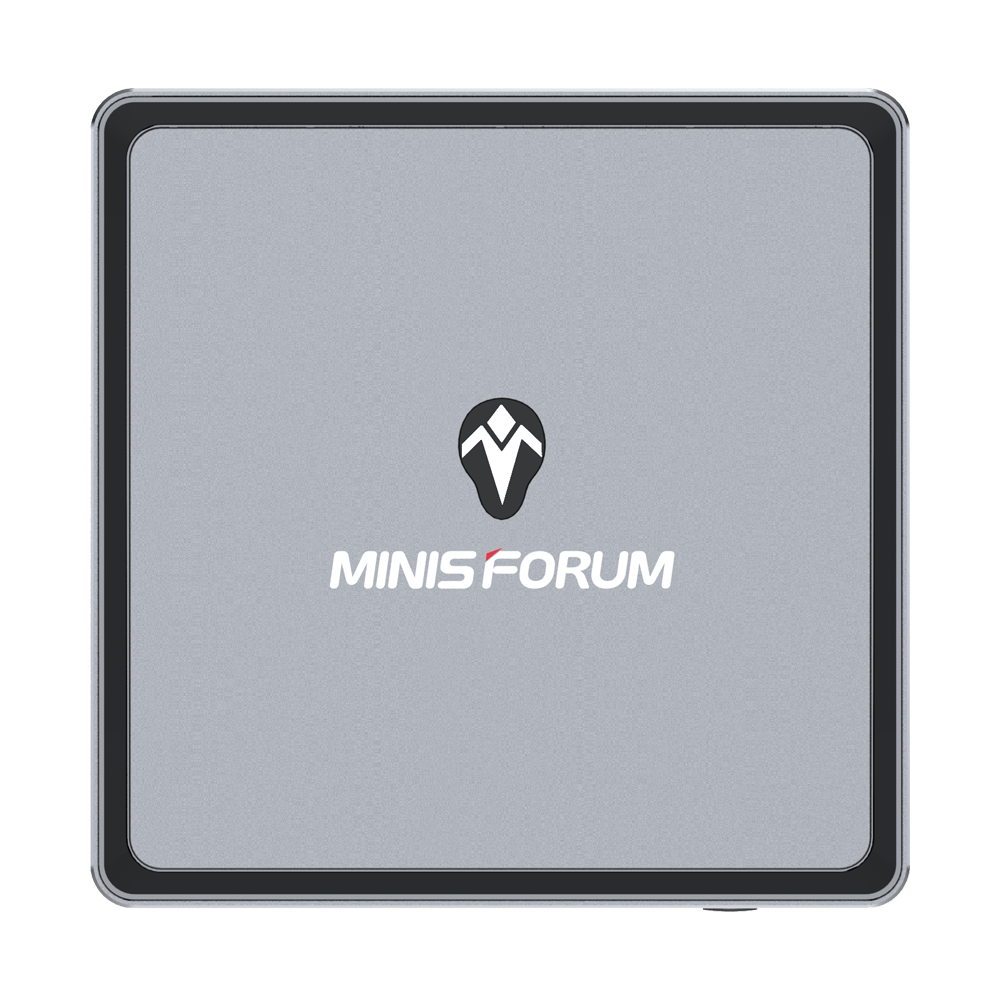

At just 128x127x46mm in size, the DMAF5 is a mini computer that perfectly fits into any setup.

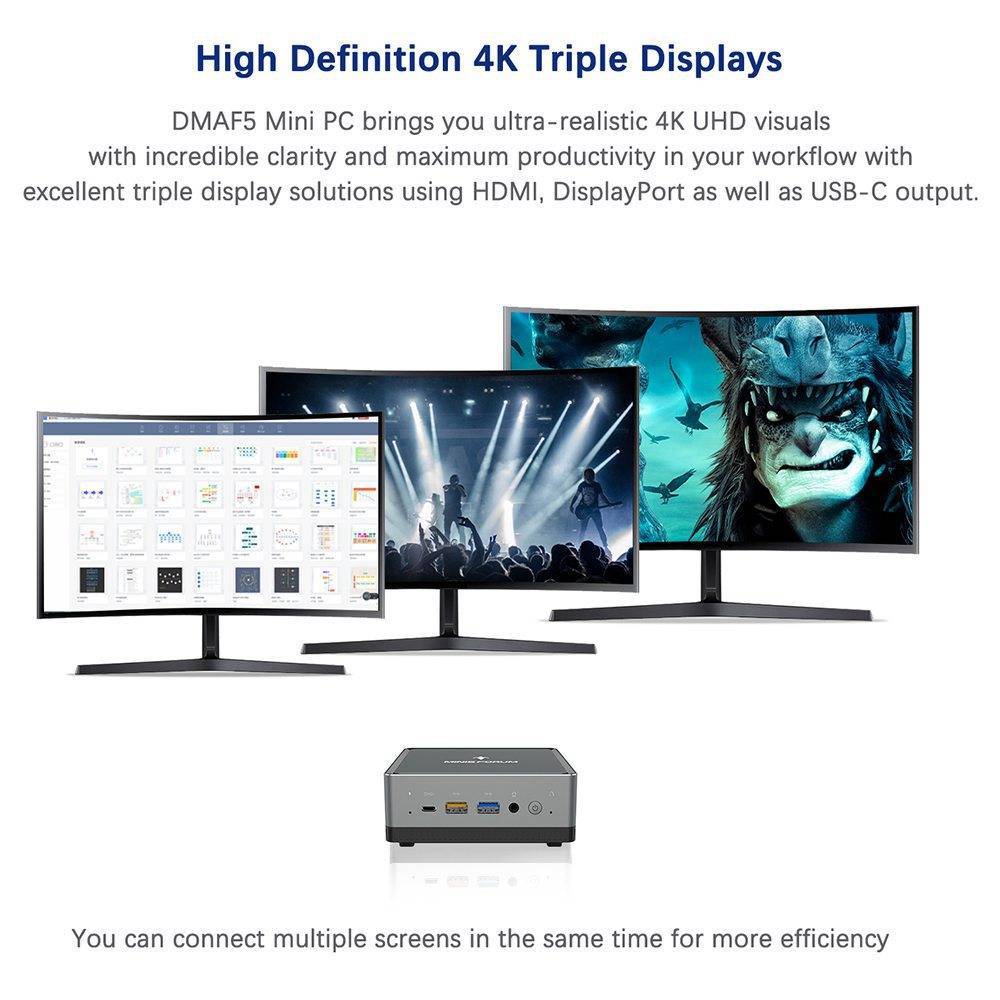

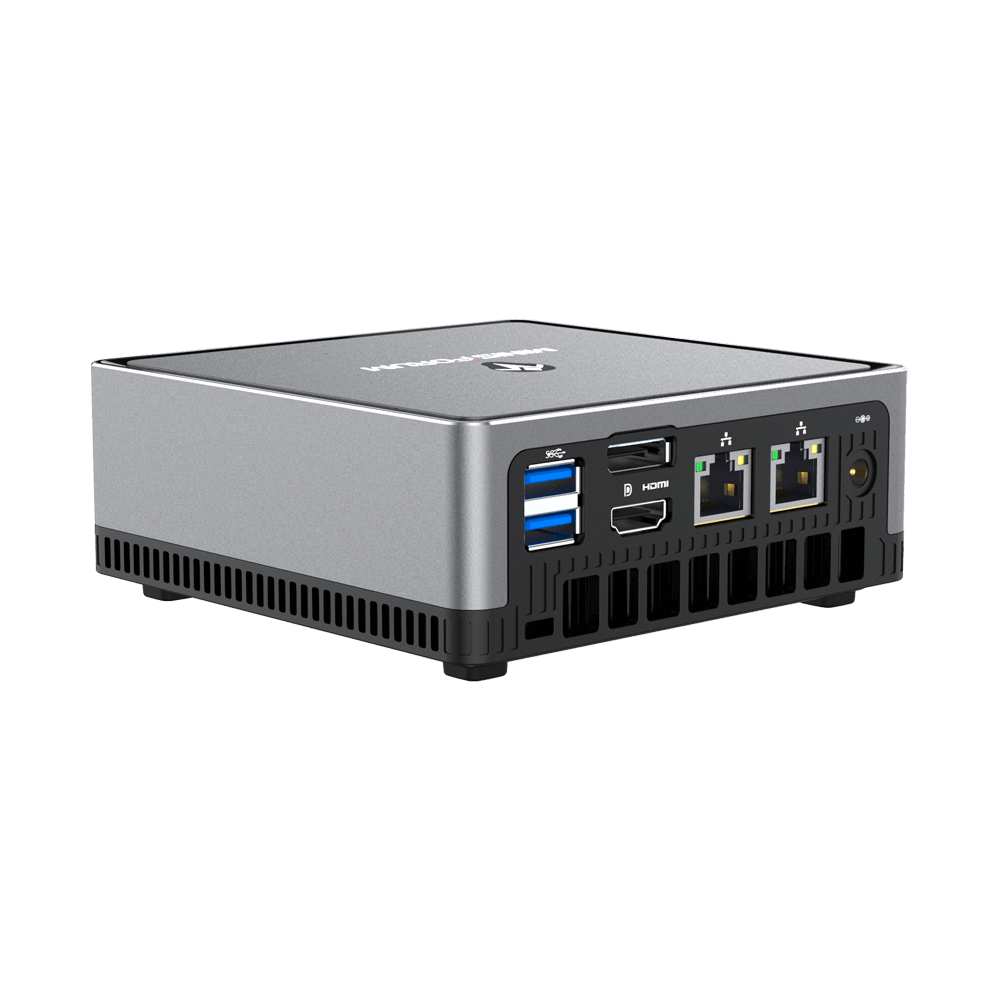

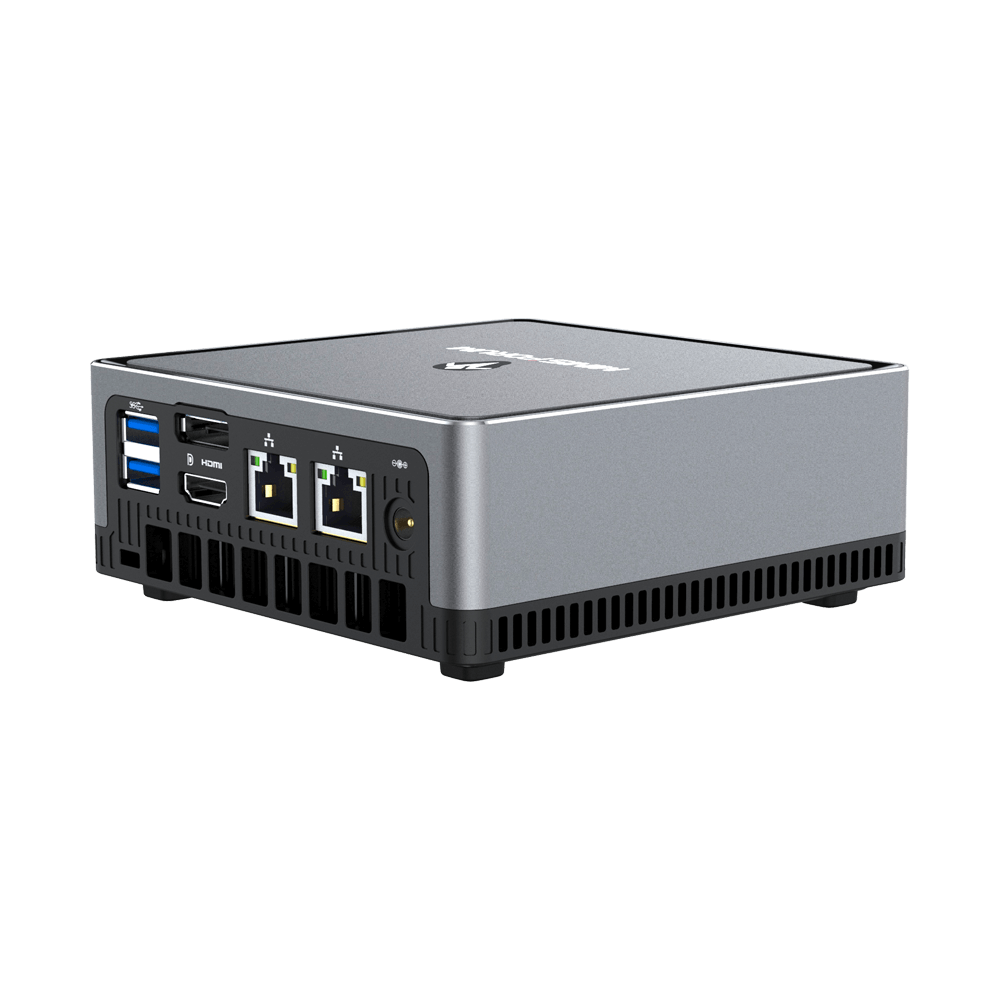

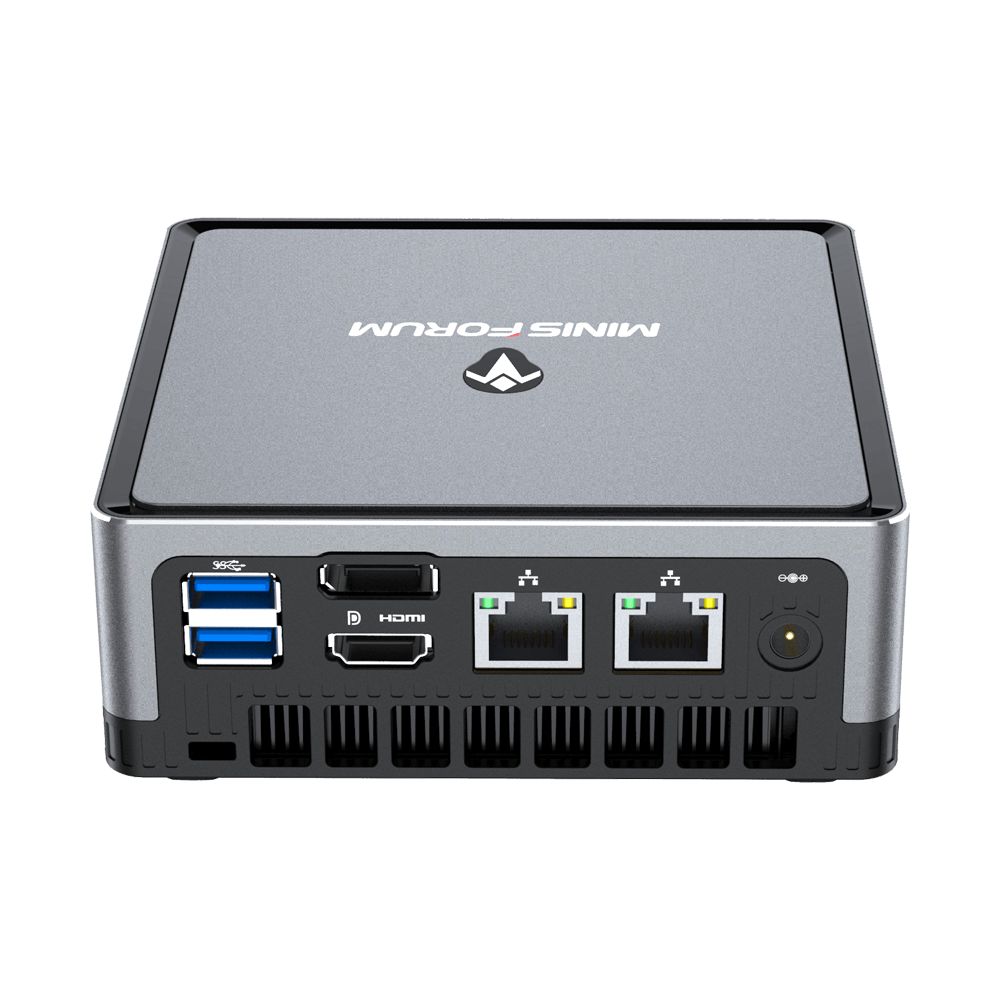

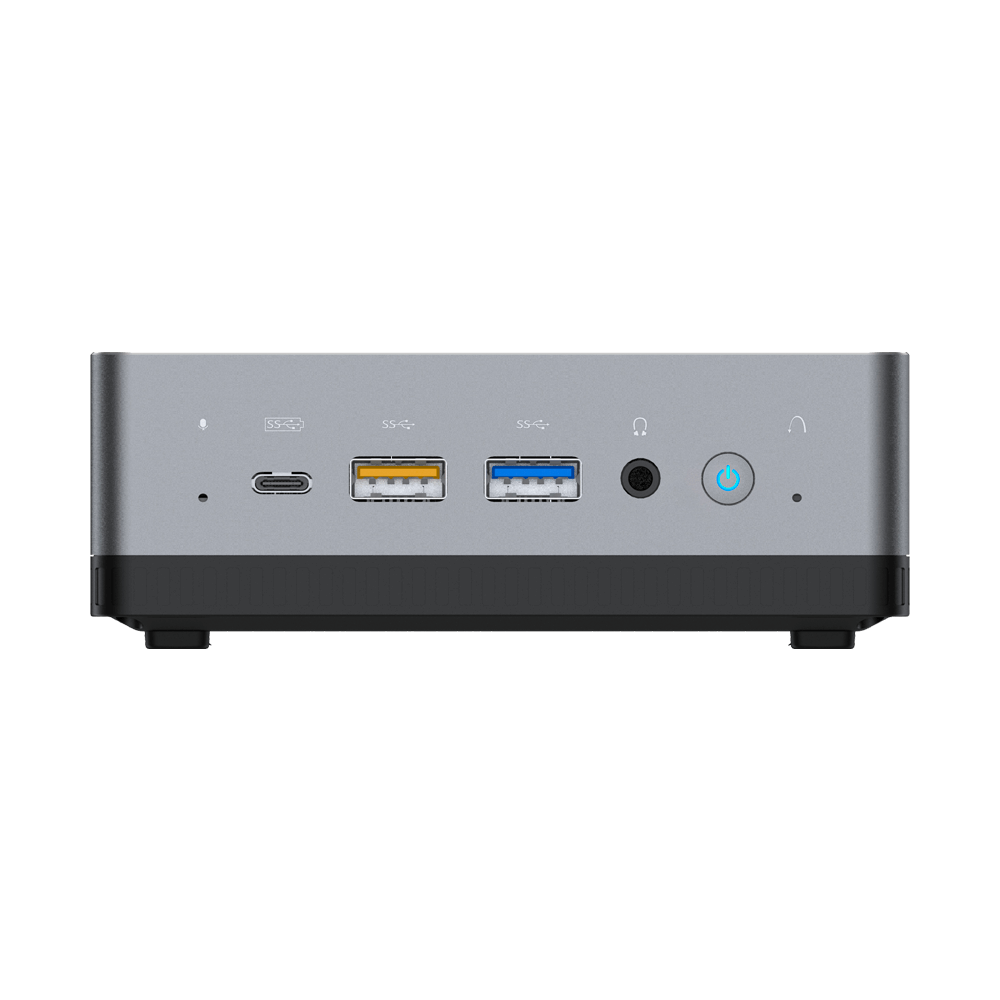

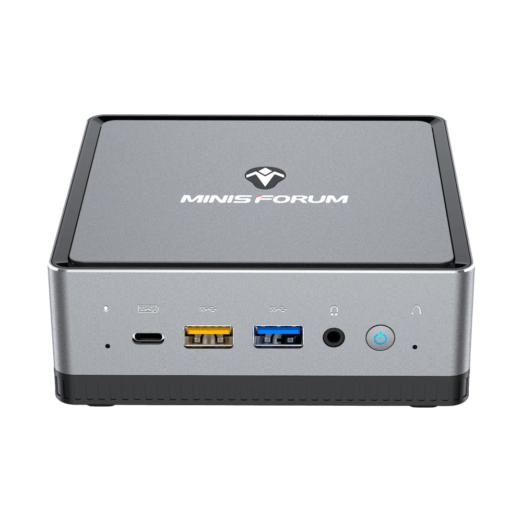

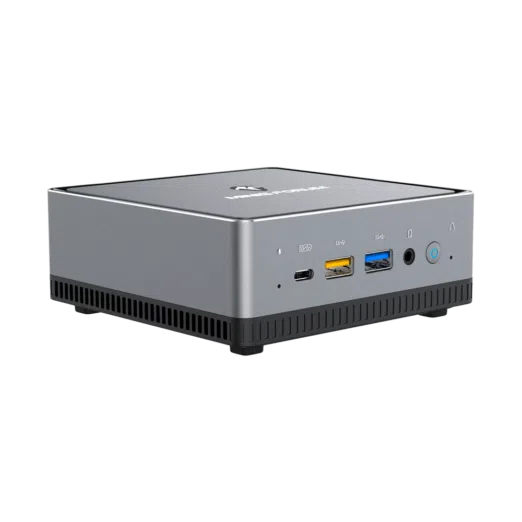

The DMAF5 can run up to three different monitors simultaneously with 4K@60Hz resolution using the featured HDMI 2.0, DisplayPort, and USB-C ports. Located on the front and rear of the device.

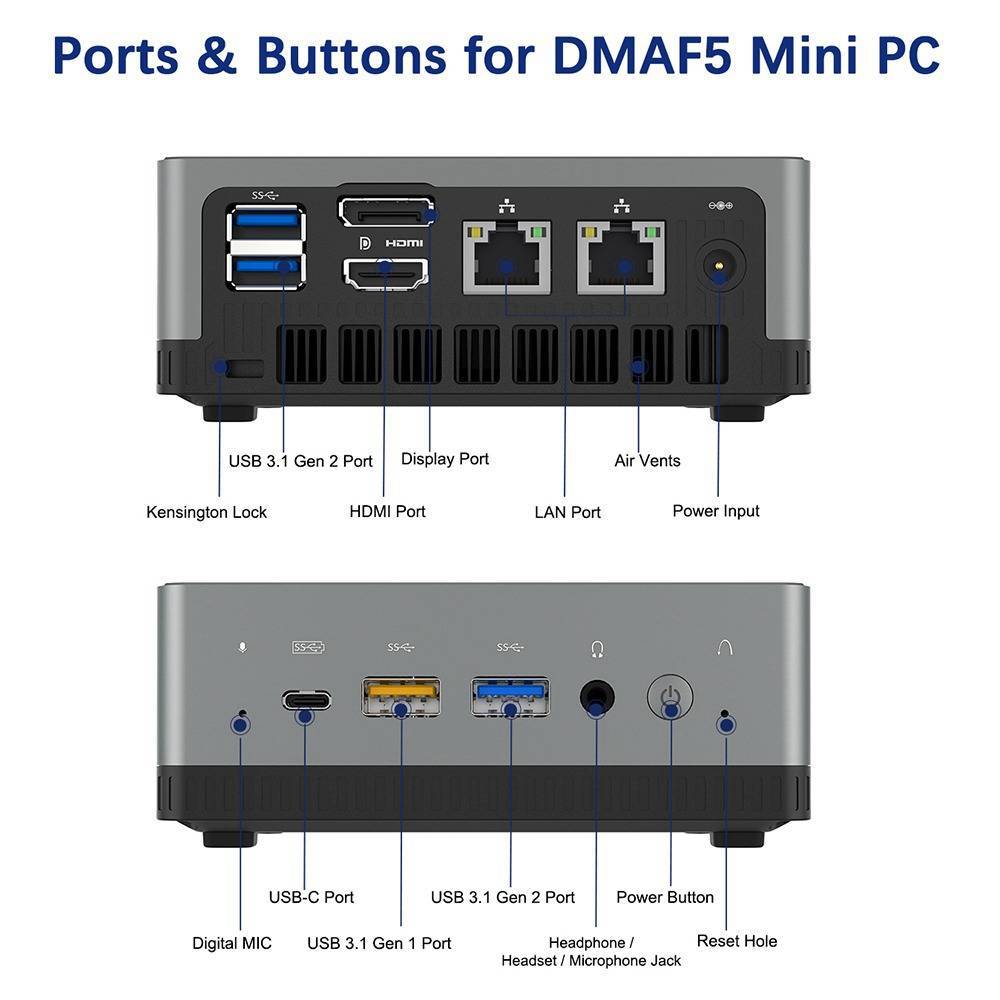

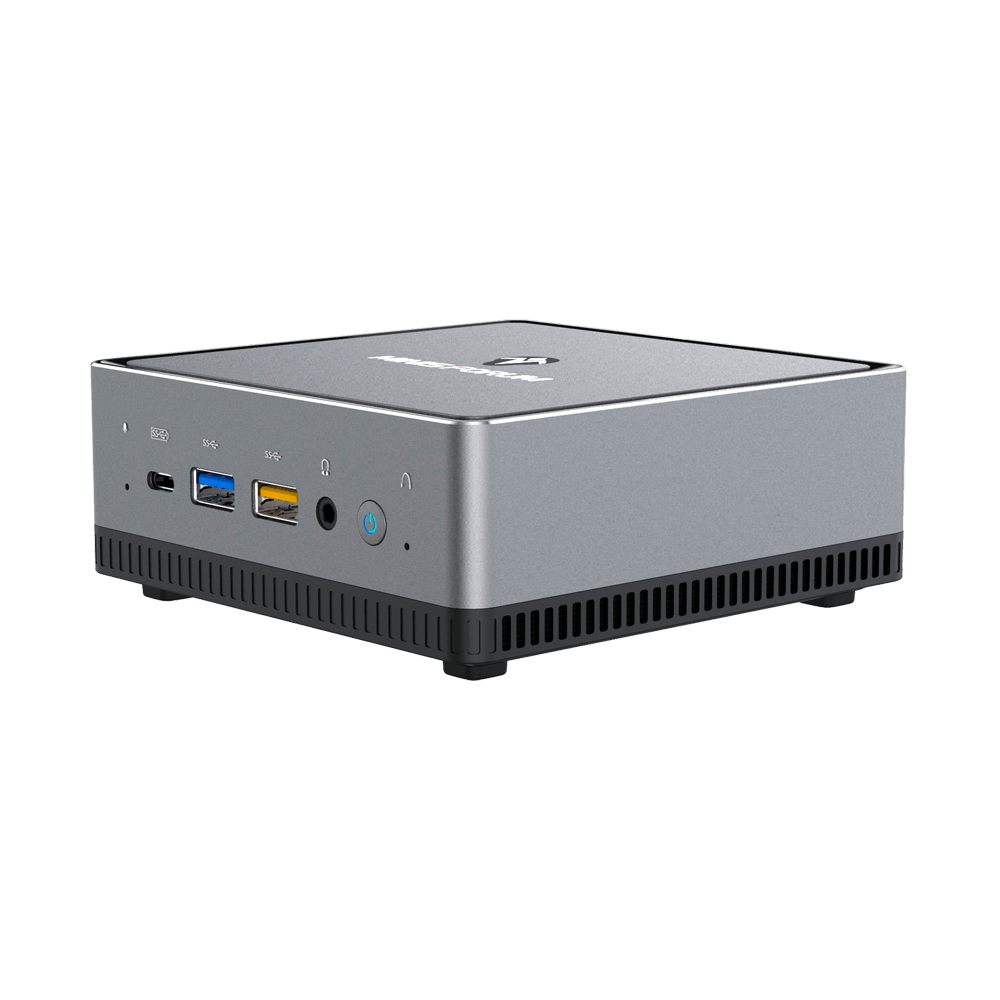

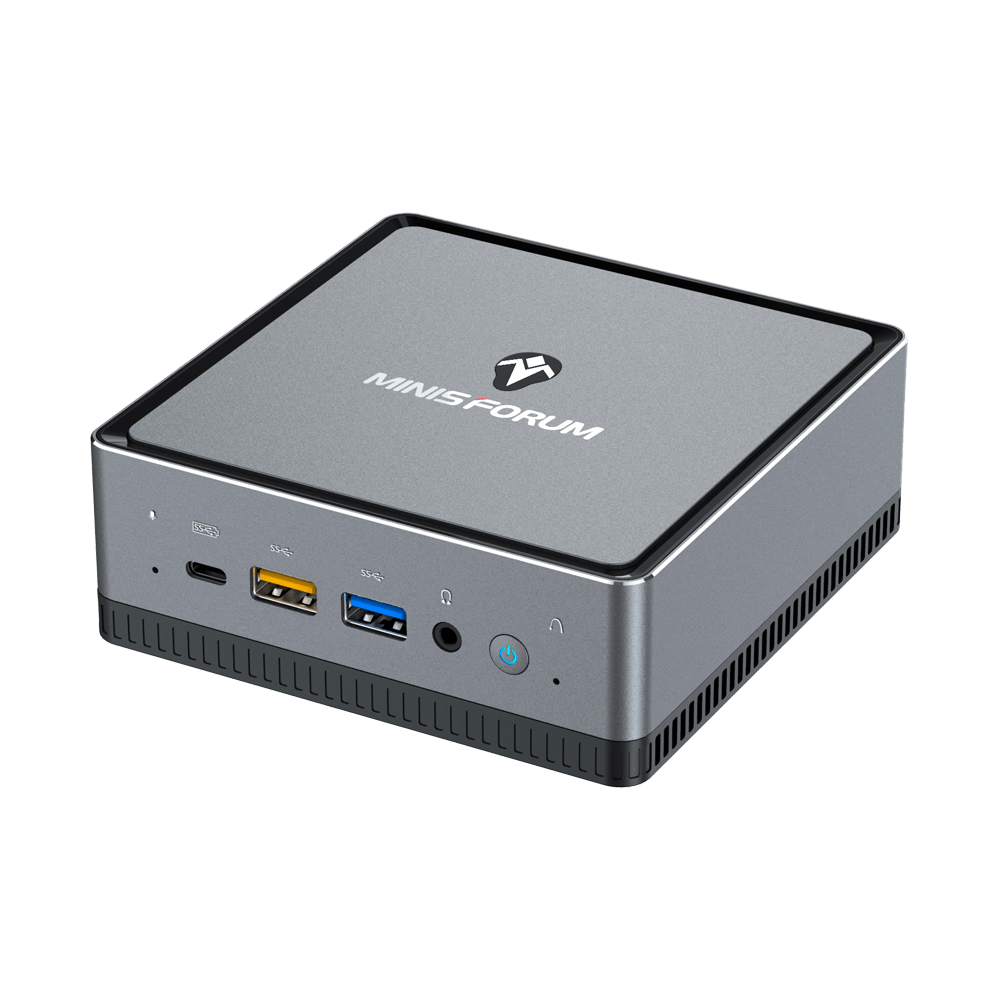

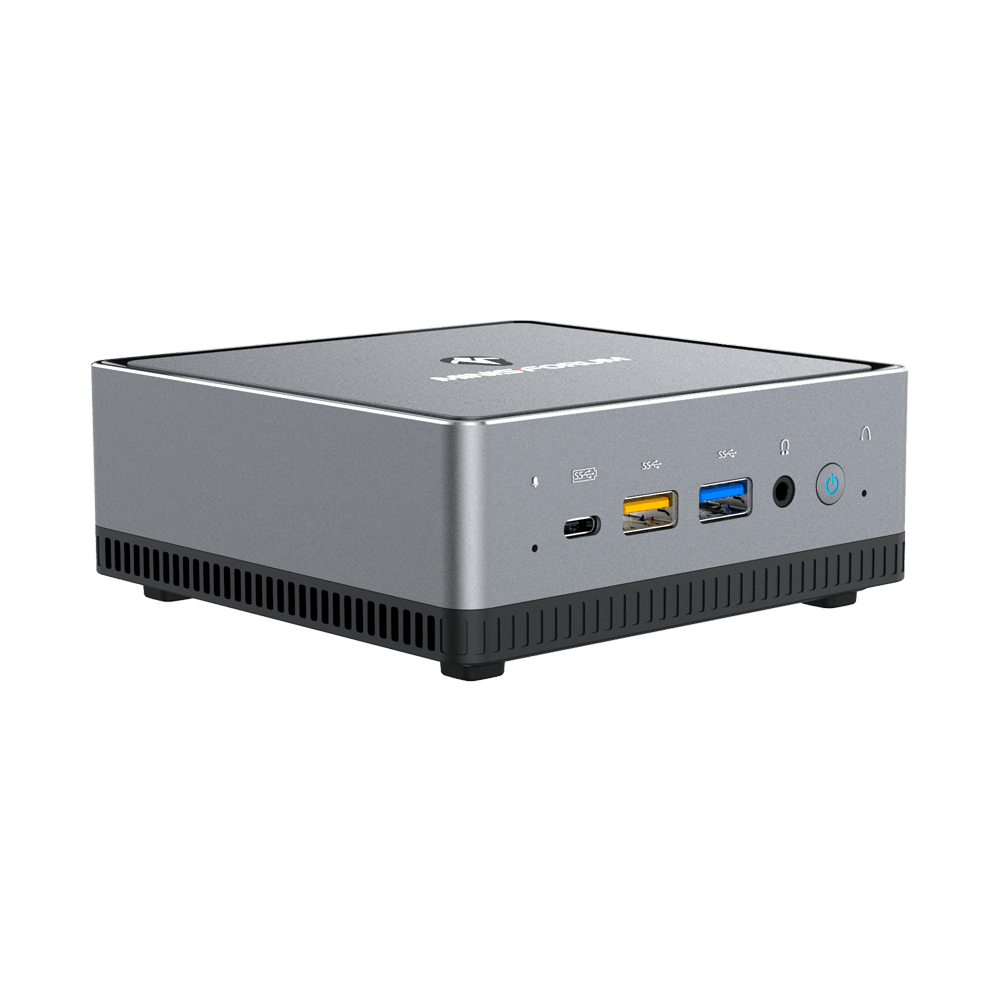

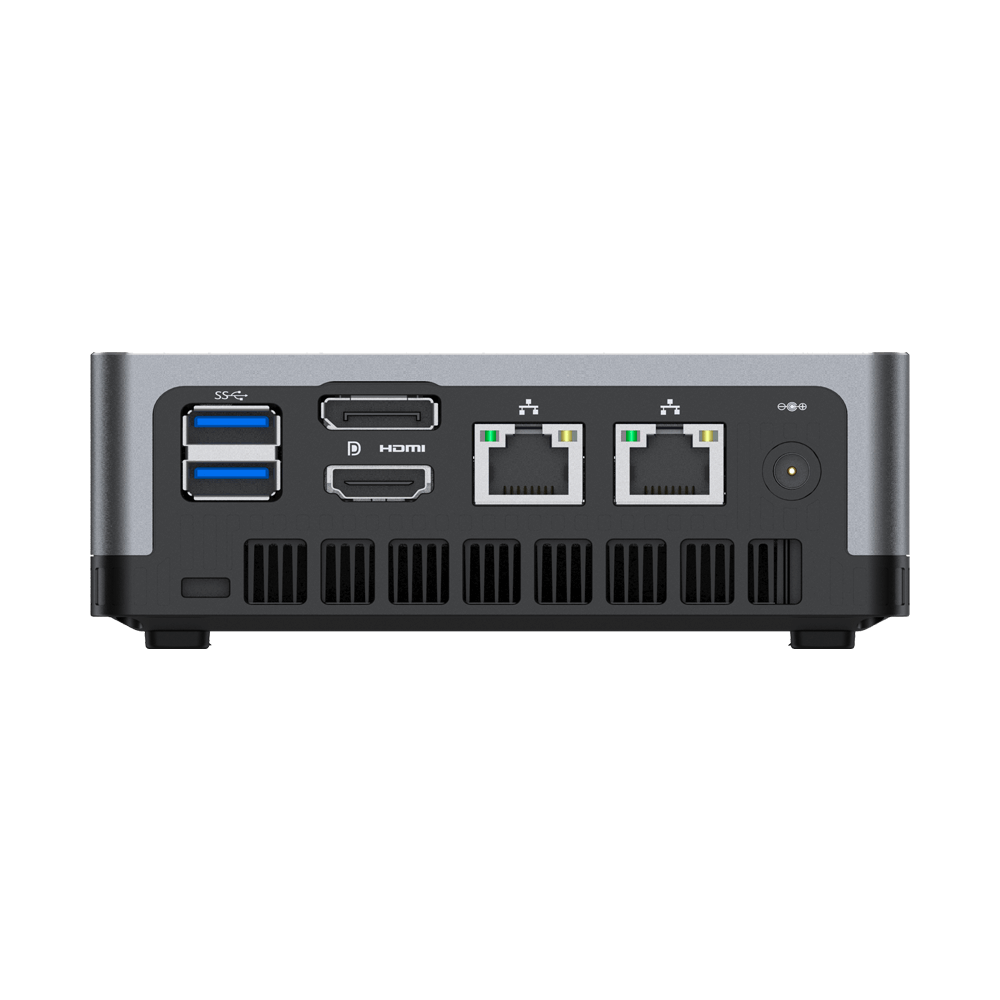

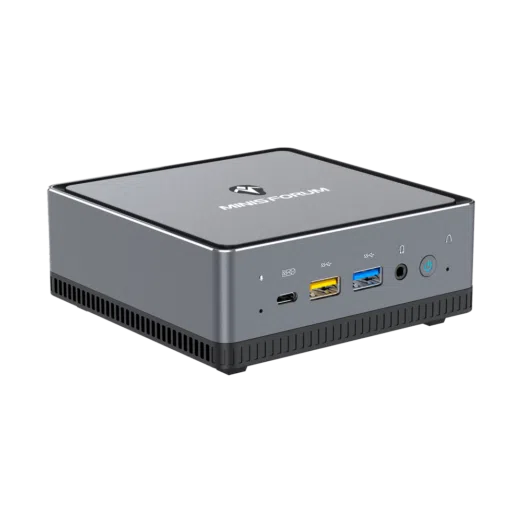

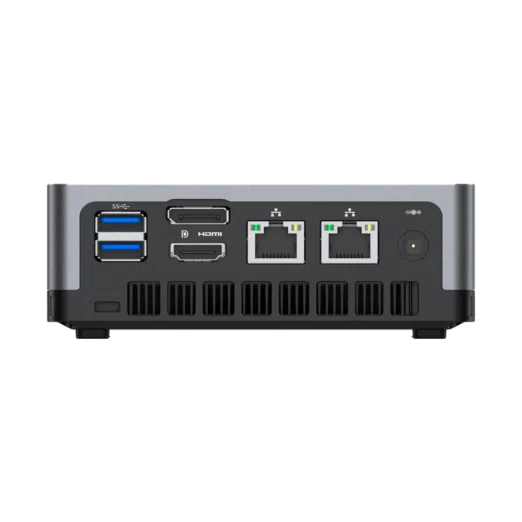

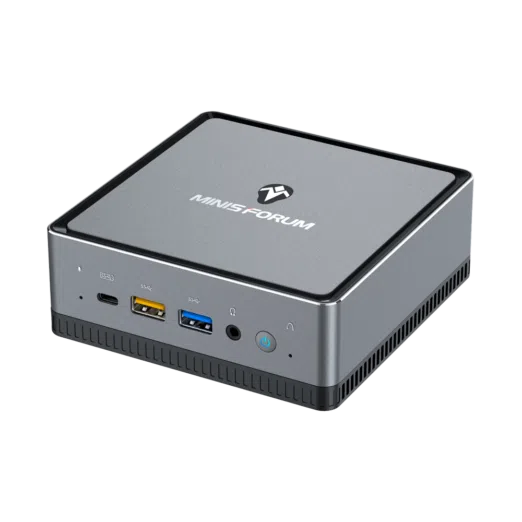

For connectivity options, the DMAF5 has a good variety on offer. Sporting three USB 3.1 (gen 2) ports, one always-on USB 3.1 (gen 1) port, a USB-C port, as well as a 3.5mm headphone jack and dual 1000Mbps Ethernet ports, the DMAF5 will comfortably connect to many different devices.

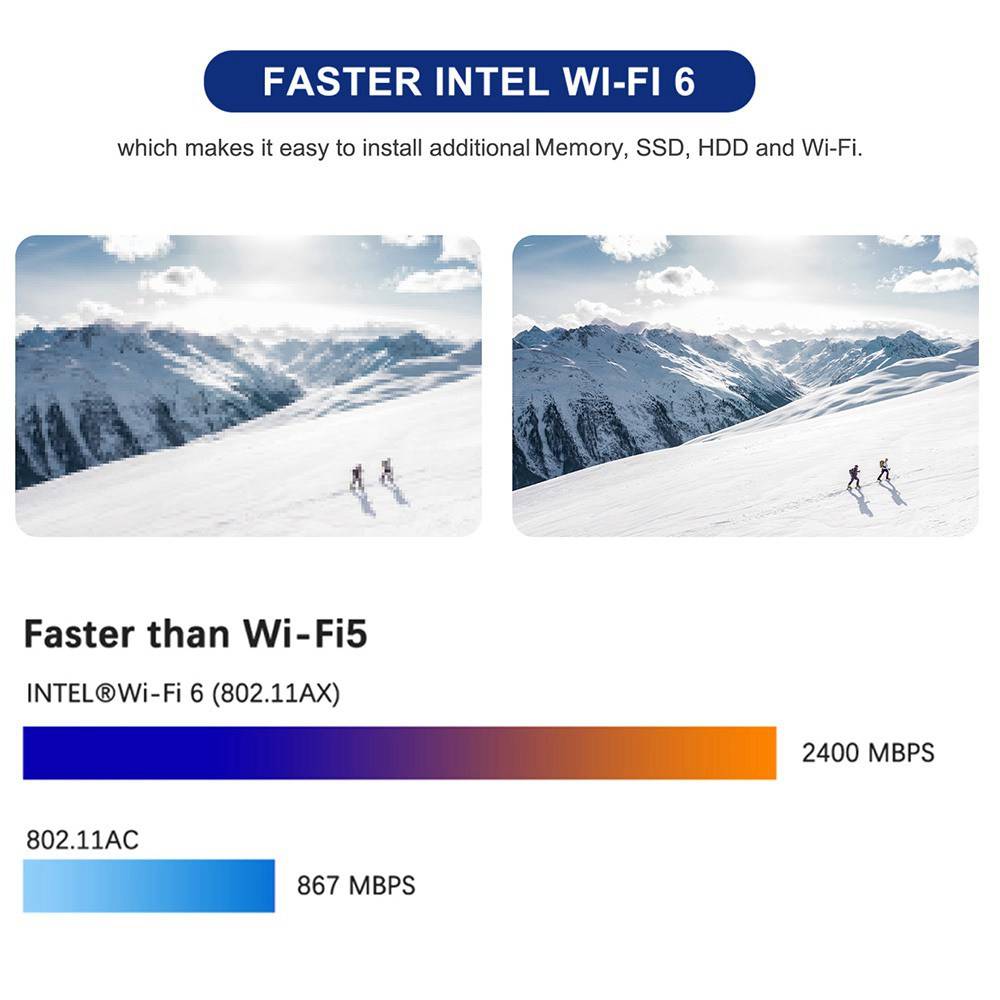

For those who like to go wireless, the DeskMini DMAF5 has you covered too! Coming with Wi-Fi 6 support and Bluetooth 5.1 connectivity out of the box, swiftly and smoothly download files and make use of your peripherals alongside this mini pc with minimal issue.

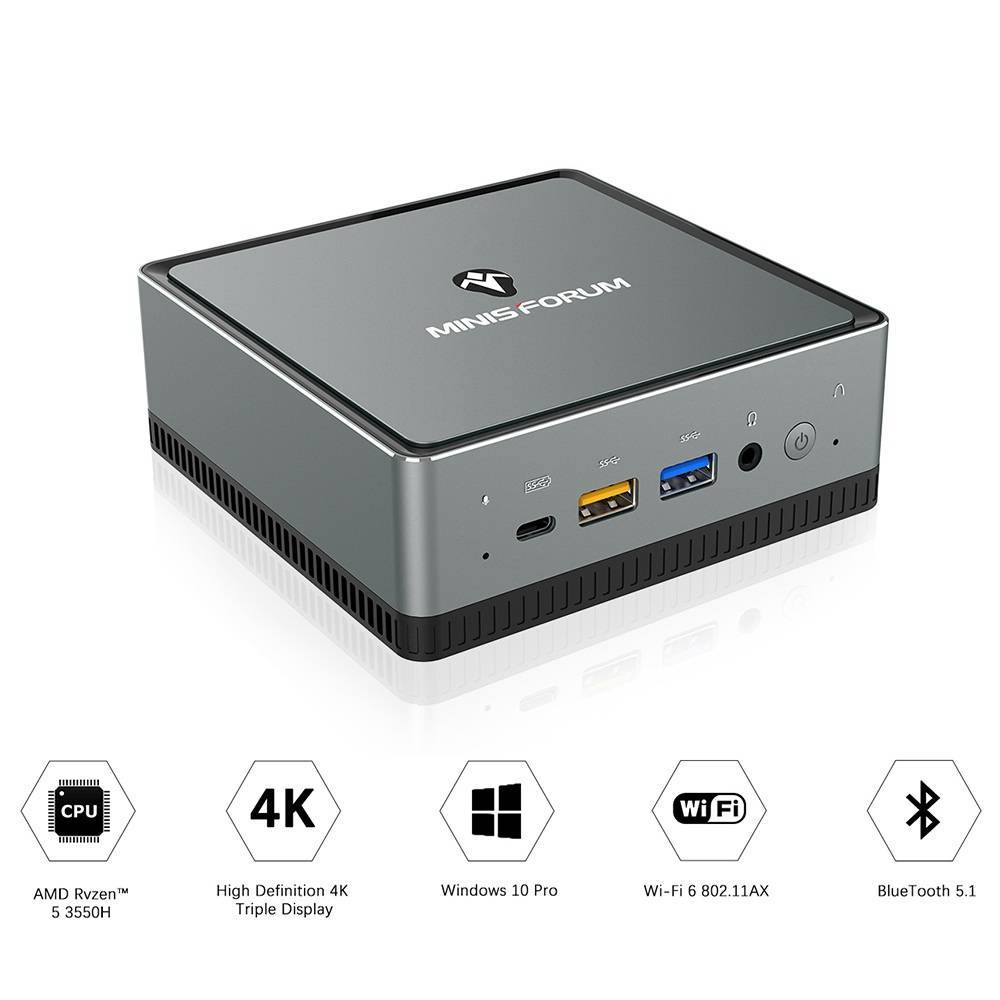

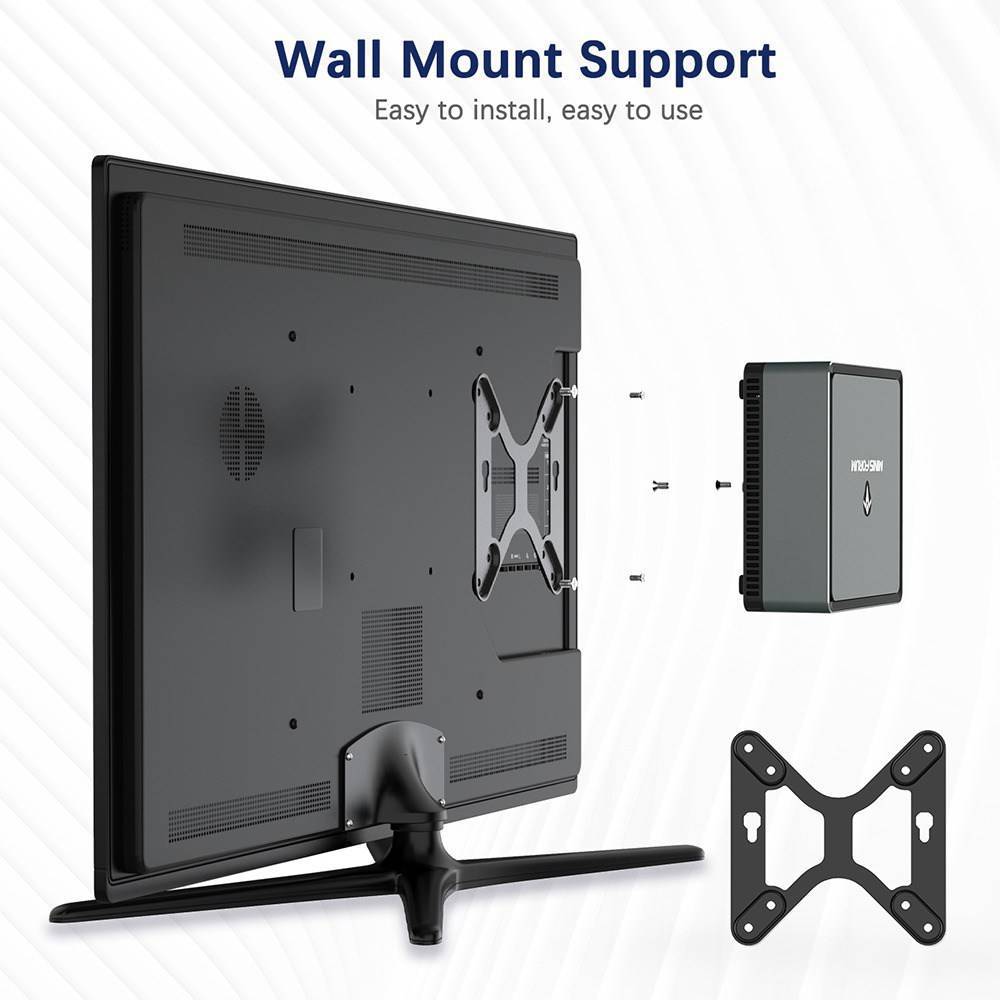

MinisForum DMAF5 - Showing 3 Display output MinisForum DMAF5 - Showing 2.5 MinisForum DMAF5 - Showing wi-fi speeds MinisForum DMAF5 - Showing applications MinisForum DMAF5 - Showing VESA Mount MinisForum DMAF5 - Showing Wall Mount MinisForum DMAF5 - Showing Features MinisForum DMAF5 - Showing PORTS MinisForum DMAF5 - Showing speed

Technical Specifications

Software
OSWindows 10 Professional (Only with variations that come with RAM/ROM)
SecurityPIN/Password
Processor
BrandAMD
ModelAMD Ryzen™ 5 3550H
Arhitecture12nm
Cores4
Base Frequency2.10 Ghz
Turbo Frequency3.70 Ghz
Total L3 Cache4 MB
Graphics Processor
InterfaceOn-Board
BrandAMD
ModelRadeon™ Vega 8 Graphics
Frequency1200 Mhz
DirectX12
AMD SenseMI Technology
AMD Zen Core Architecture
AMD FreeSync™ Technology
Memory (RAM)
CapacityEmpty/8GB/16GB/32GB (Depending on the model purchased)
TechnologyDDR4 (SO-DIMM)
ExpandableOnly Barebones/8GB Configuration
Storage (ROM)
CapacityEmpty/256GB/512GB/1TB (Depending on the model purchased)
TechnologyM.2 NVMe SSD
Expandable1x 2.5" HDD/SSD (SATA)
Network
Ethernet2x 10/100/1000M Ethernet Adapter (RJ45)
Wi-Fi802.11a/ac/b/g/n/ax Module – Dual-Band
Bluetooth5.1
I/O Interface
USB1x USB 3.1 (Gen 1) ; 3x USB 3.1 (Gen 2)
Video1x HDMI 2.0 Port (4K@60Hz) ; 1x DisplayPort (4K@60Hz) ; 1x via USB-C (4K@60Hz)
Audio1x HDMI 2.0 Port ; 1x DisplayPort ; 1x via USB-C ; 3.5mm Audio Jack
PowerPower Adapter
Dimension/Weight
Product Dimensions(L x W x H): 12.8 x 12.7 x 4.6 cm / 5.03 x 5 x 1.8 inches
Product Weight500g
Package Dimensions(L x W x H): 15.8 x 15.8 x 1 cm / 6.2 x 6.2 x 0.3 inches
Package Weight1.4Kg

Application Ready

At the time of publication, this list is comprehensive and accurate. Specific apps or add-ons may be removed or added in the future.

Windows 10 OS
The most used Operating System on the planet. That's for a reason

Package Includes

1 * Power Adapter
1 * HDMI Cable
1 * DisplayPort Cable

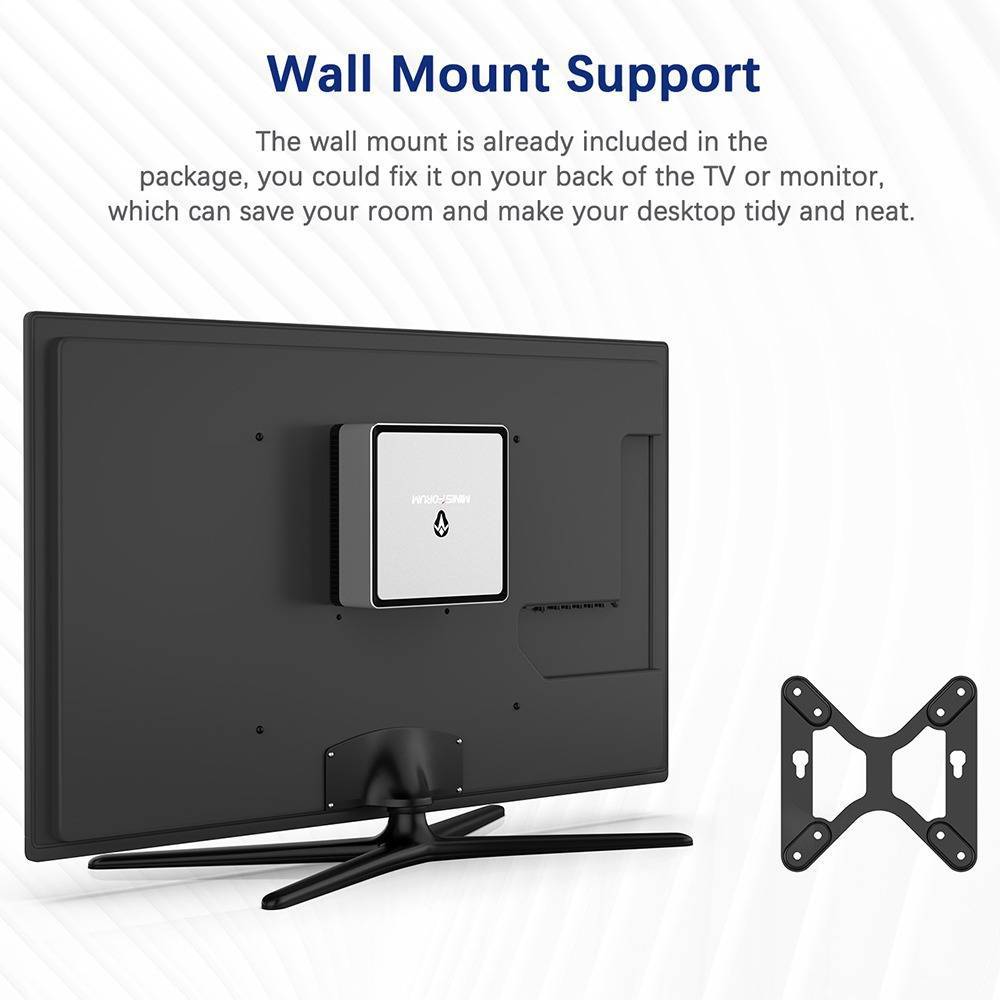

1 * VESA Mount
1 * User manual

Please Note

In line with the policy of continued development, the manufacturer reserves the right to amend the specifications without prior notification. The illustrations in the user manual are for reference only.

Reviews

Customer Reviews

Based on 15 reviews
93%
(14)
0%
(0)
7%
(1)
0%
(0)
0%
(0)
B
Baz on the South Coast (Gosport, United Kingdom)
DeskMini DMAF5 AMD Ryzen Mini PC

Just been using this for less than a week & it's a really impressive bit of kit for the price. Amazingly small form factor and so much faster than my old HP computer. And of course you have the option to use up to 3 Monitors with the HDMI, USB C & Display Port, Very handy when you can connect to your TV to watch Netflix etc, etc.
I opted for the 512Gb storage and 16Gb of RAM. (The mid range version) Having checked out others including the Android versions which do not run Windows Operating System. I particularly wanted Windows OS so I could transfer certain programs & files. So in conclusion I'm very happy with this purchase and would recommend it to others and would also recommend the seller DroiX for their extremely fast service. :-))

C
Connor Welsh (Manchester, United Kingdom)

MinisForum DeskMini DMAF5 AMD Ryzen Mini PC

G
Gary (Gillingham, United Kingdom)
DMAF5

Great Little PC, Small, Light and Very Quiet.
It's much better and runs a lot cooler than the Laptop I was using to run the same Tasks.
It's on 247 and I connect to it via RDP, So a little early to comment on it's longevity.
After the Initial Setup it can be used with no Mouse, Keyboard or Monitor connected, so is ideal for being put somewhere out of the way.
I will be installing a 1TB SSD when I get a minute.
The team at Droix are also very Friendly and Helpful.

C
Curling, Micheal (Newcastle upon Tyne, United Kingdom)

MinisForum DeskMini DMAF5 AMD Mini PC

C
Chris Miller (Newcastle upon Tyne, United Kingdom)
Great PC

My first mini PC and have been impressed with it. Quick delivery (ordered Sunday, arrived Tuesday) with great comms. Really easy to set up and simple to use. Fast and quiet running. Lots of USB slots and it has been a pleasure to use. I have attached it to the back of a monitor and with a bit of cabling management everything is tucked away.
