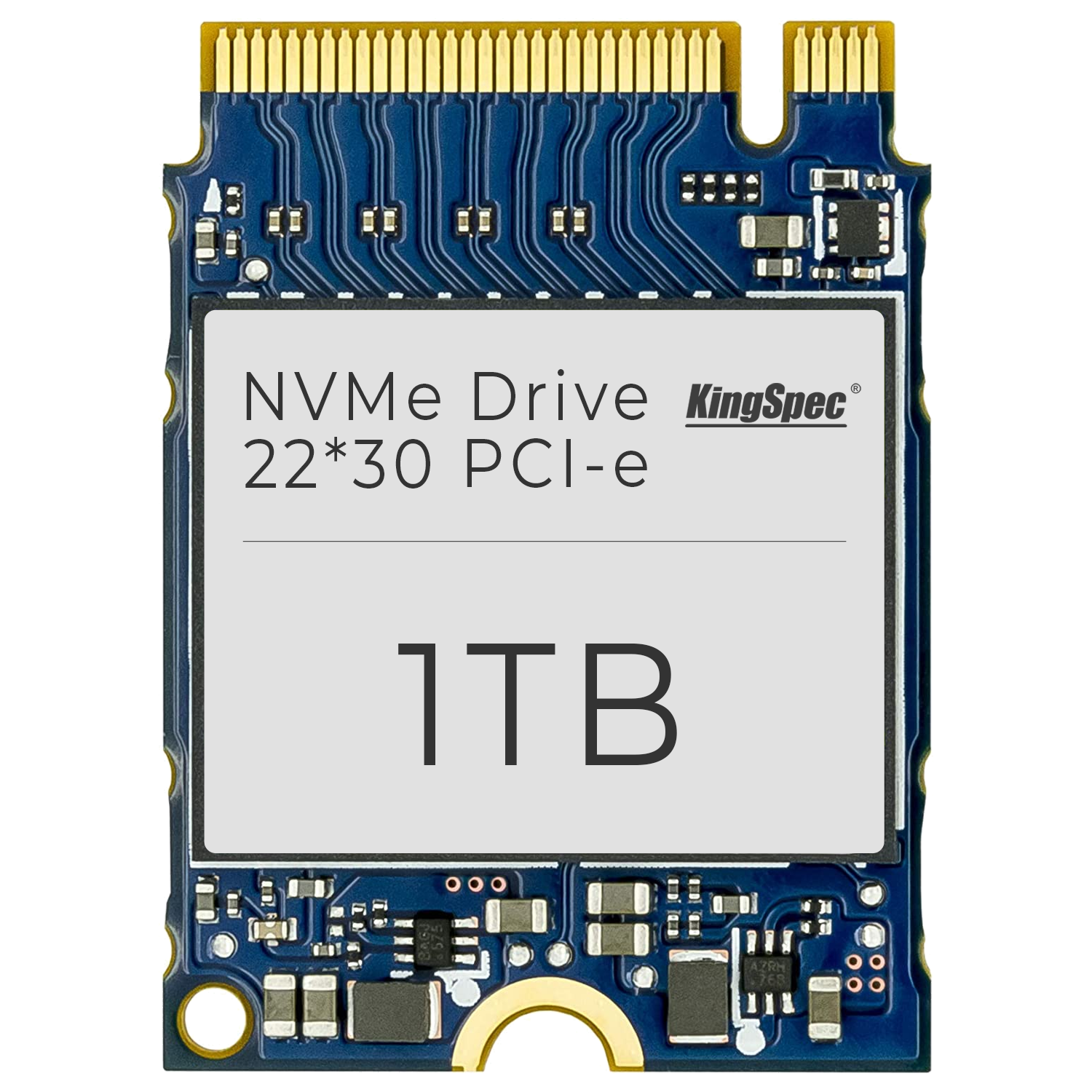

KingSpec 2230 NVMe Storage

  • Fast NVMe Speeds
  • Compatible with the SteamDeck & GPD WIN Max 2
  • 3 Years Warranty
Add to wishlistAdded to wishlistRemoved from wishlist 3
Add to compare

Starting at £79.95 Incl. VAT

2 People looking at this now
American Express Apple Pay Klarna Mastercard PayPal Visa

Great Accessories


The KingSpec NVMe 22*30 Solid State Drive is capable of reaching read speeds of up to 3621.35 MB/s and write speeds of up to 2314.32 MB/s. These speeds are significantly faster than those of a traditional hard drive, which can typically reach speeds of around 100 MB/s. This means that the KingSpec NVMe drive is able to access and transfer data much more quickly, resulting in faster boot times and faster launching of software.

For example, let’s say you have a large software application that you need to install. With a traditional hard drive, it might take several minutes to complete the installation process. With the KingSpec NVMe drive, however, the installation process would be much faster, as the drive is able to access and transfer the necessary data at much higher speeds.

In general, the faster read and write speeds of the KingSpec NVMe drive make it an excellent choice for those who want to improve the overall performance of their computer. Whether you’re a gamer looking to load levels faster, a creative professional working with large files, or just someone who wants a smoother, more responsive computing experience, this drive is sure to deliver.

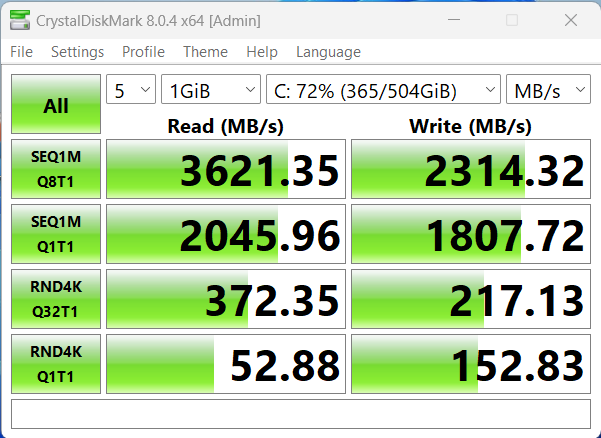

Check bellow results for Steam Deck using KingSpec 2230 NVMe 1TB Storage :

Read Speed: 3621.35 MB/s
Write Speed : 2314.32 MB/s

The CrystalDiskMark benchmark software runs a series of tests on the storage to see its performance across different read/write patterns. The results show the optimal maximum reading and writing speeds on the first row.


Read / Write Speed on Steam Deck

Technical Specifications

Support OSWindows 7, Windows 10, Windows 11, Windows Server 2012 R2, RHEL, CentOS, Ubuntu, Linux
InterfaceM.2 M-key ,PCIe Gen3 x 4Lane, NVME 1.3
Dimensions (L x W x H)L 30.0mm*W 22.0mm*H 2.1mm±0.1mm
Sequential Read3627.57 MB/s
Sequential Write 2059.29 MB/s
Max Random 4k Read220K IOPS
Max Random 4k Write230K IOPS
Operating VoltageDC 3.3V±5%
Idle power consumption0.37W(1TB)
Active power consumption2.0W(1TB)
MTBF1 million hours
ECCHardware LDPC capable of correcting errors
Operating temperature0~+70℃
Storage temperature-20~+75℃
Operating Humidity5-95%

Package Includes

1 * 22*30 NVMe SSD

Please Note

In line with the policy of continued development, the manufacturer reserves the right to amend the specifications without prior notification. The illustrations in the user manual are for reference only.


Customer Reviews

Based on 7 reviews
Pierre T.
Le premier étant défectueux droix

Le premier étant défectueux droix a procédé à son remplacement dans les plus brefs délais. Super service après vente.

Le nouveau fonctionne à la perfection

Pierre T.
Le premier étant défectueux droix

Le premier étant défectueux droix a procédé à son remplacement dans les plus brefs délais. Super service après vente.

Le nouveau fonctionne à la perfection

Emmanuel O.
Broke down after 2 months of use on the steam deck

Boufht to replace the 64gb nvme storage on the Steam deck.Installed fine without any issues, and was fine for a couple of months. But one day unexpectedly gave out. The nvme is no longer being recognised on the Steam deck,or any other compatible hardware. Waste of time and money

Hi, we are so sorry to hear that your NVMe has stopped working. Please email [email protected] so we can sort this out for you. Alternatively, a member of the team will reach out to you as soon as possible.

Luke R.
Good drive for the price

Used in a steam deck and no issues so far, good for the price

Upgrade for my steam deck

Had the 1tb version installed in my steam deck for about a week now. Pretty easy to do just make sure you use a good tool kit and follow the videos you can find. I have kept a check on the heat preform and played gods of war GTA 5 and cyberpunk with heavy play time no problems at all while playing and is a good upgrade from a 64gb storage. the card is slightly thicker seems to be the heat pad on the 1tb but the silver cover from the steam deck will go on with patients and time don't rush it.
all round pleased with the 1tb card and speed of delivery.
